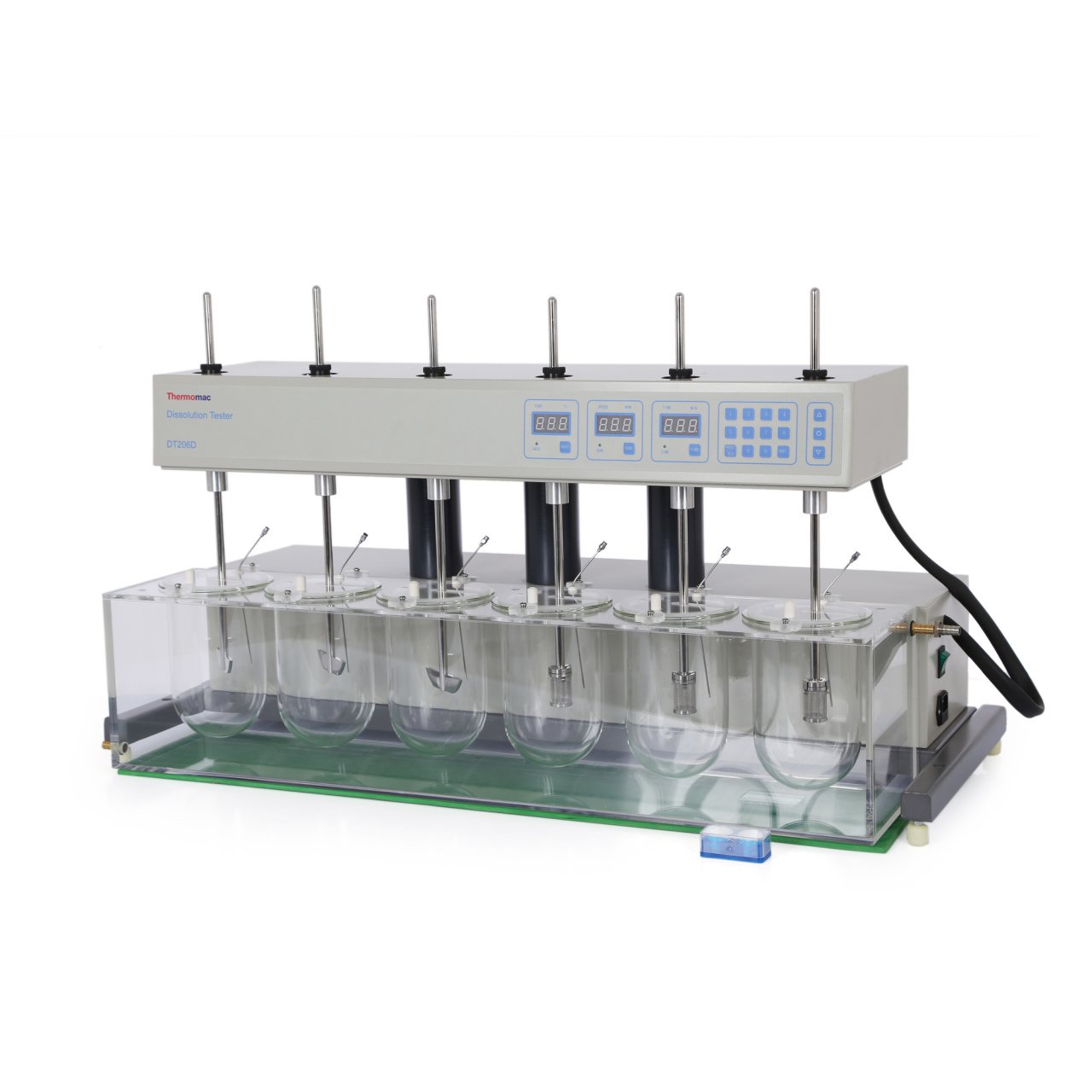

Thermomac DT206D Dissolution Tester 6-station
6-Chamber – Adjustable Temperature, Rotation Speed, and Time – Data Logging System – Uniform Heating via Water Circulation – LED Display – Product with Warranty
Stock Code DT206D
Thermomac DT206D Dissolution Tester 6-station
Thermomac
6-Chamber – Adjustable Temperature, Rotation Speed, and Time – Data Logging System – Uniform Heating via Water Circulation – LED Display – Product with Warranty
Request a QuoteData Logging System – Uniform Heating via Water Circulation – Auto-Diagnosis – Tablet Dissolution Tester – Uniform Temperature – Speed Accuracy: ±2 rpm
Thermomac DT206D Dissolution Tester – 6-Position – Auto-Test – Auto-Alarm Functions – Temperature Stability: ±0.3°C
Thermomac Dissolution Tester – Tablet Dissolution Testing – 20–200 rpm – 45°C – Digital Pharmaceutical Testing – Auto-Test, Auto-Diagnosis, Auto-Alarm
Features
- Six vessels and six shafts are arranged in a single line.
- The head section of the instrument can rotate automatically, smoothly, and flexibly.
- The basket and paddle assemblies are made of imported stainless steel.
- The magnetically driven circulating water system provides uniform heating, allowing the bath liquid to reach a consistent temperature.
- An MPU is used to automatically control temperature, rotation speed, and time. Parameters can be preset at any time.
- Easy operation via control keys. Measurement results are displayed on the LED screen. Preset and actual values can be displayed alternately in real time.
- Automation functions: Auto-Test, Auto-Diagnosis, and Auto-Alarm.
- The instrument can perform a self-test and provide automatic alarm notifications.
- Test times can be preset as required. After completing one test, the instrument automatically proceeds to the next and provides an audible beep notification.
- Model
- DT206
- Speed Range
- 20-200 rpm
- Speed Accuracy
- ±2rpm
- Temperature Stability
- ±0.3℃
- Temperature Range
- +45.0℃
- Nine Preset Time Points
- 1-999 min
- Time Accuracy
- ±0.3%
- Paddle Radial Runout
- ±0.5mm
- Basket Radial Runout
- ±1.0mm
- Power
- 110V/60Hz/1200W
- Dimensions
- 960*400*800mm
- Number of Baskets
- 6
